Foldable Drone Propellers Equipped With Motor Side Modulators For Heavy-duty AG Drone Power Set

Brand Name:	Sky E
MOQ:	1
Price:	Contact Us
Delivery Time:	1 Months
Payment Terms:	Prepaid

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Drone Kit

Recommended Take Off Weight:

32.5-37.5kg

Lithium Compatible:

18 S (LiPo)

Weight With Cable And Props:

5908g

Operating Temperature:

-10~40℃

Ingress Protection:

IPX6

Max Thrust:

72kg

Rated Voltage:

69V

Tube Outer Diameter:

60mm

Cable Specification:

Power Cable: 6AWG-1500mm Signal Cable: 1550mm

Packaging Details:

Carton

Supply Ability:

10,000 units per year

Highlight:

Motor Side Modulators Foldable Drone Propellers

Drone Folding Propeller

Heavy Duty Drone Propellers

Product Description

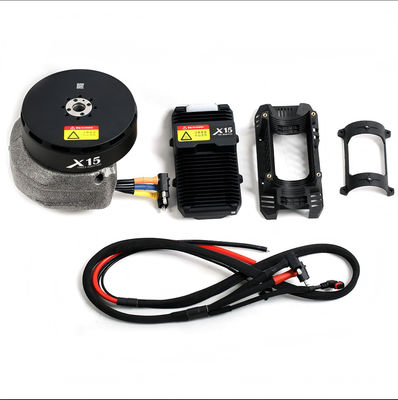

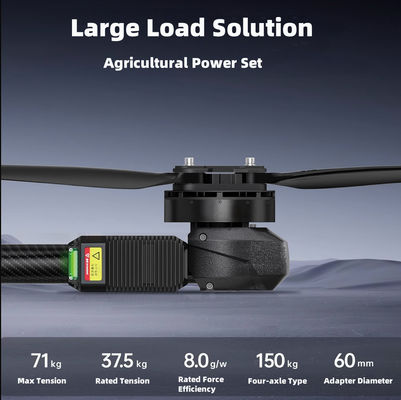

Foldable Drone propellers Equipped with Motor Side Modulators for Heavy-duty AG Drone Power Set

1. Adopting high-performance motors, it provides strong torque and power, meeting the high demands of devices such as drones in terms of load-bearing, speed, and flight performance, suitable for scenarios like agricultural spraying and heavy-duty transportation.

2. The Sideband modulator has a high degree of compatibility with the motor, ensuring smooth power output, reducing flight jitter, and enhancing the stability of the drone's flight attitude, thus increasing flight safety and reliability.

3. The design of the motor and Sideband modulator is optimized for high energy conversion efficiency, reducing energy consumption, extending the drone's endurance, and improving work efficiency.

4. Compatible with a variety of drone frames and flight control systems, it is convenient for users to install and use, featuring high versatility and flexibility.

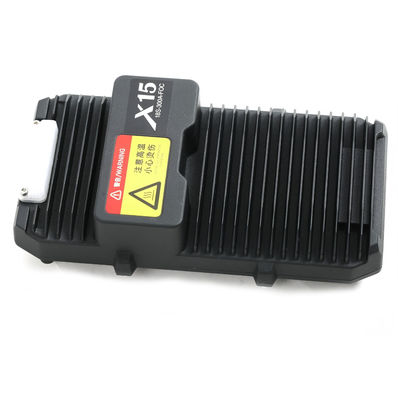

Sideband modulator parameters

Size	18510651.5mm
Peak current	300A
Operating pulse width	1050-1950us
Continuous current	100A
Double throttles signal	PWN+CAN

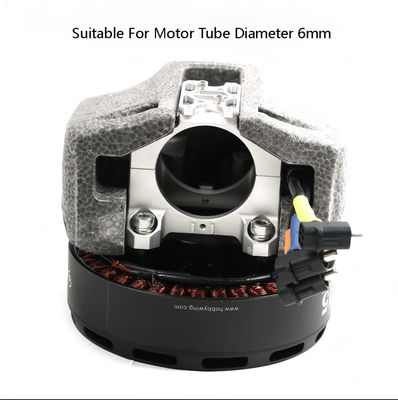

Motor parameters

size	167.1*60.6mm
Weight	2850g

Blade parameters

Diameter	63*24
Weight	400g
Length	1600.2mm
Total weight	1190g
Material of props	Carbon nylon folding props
